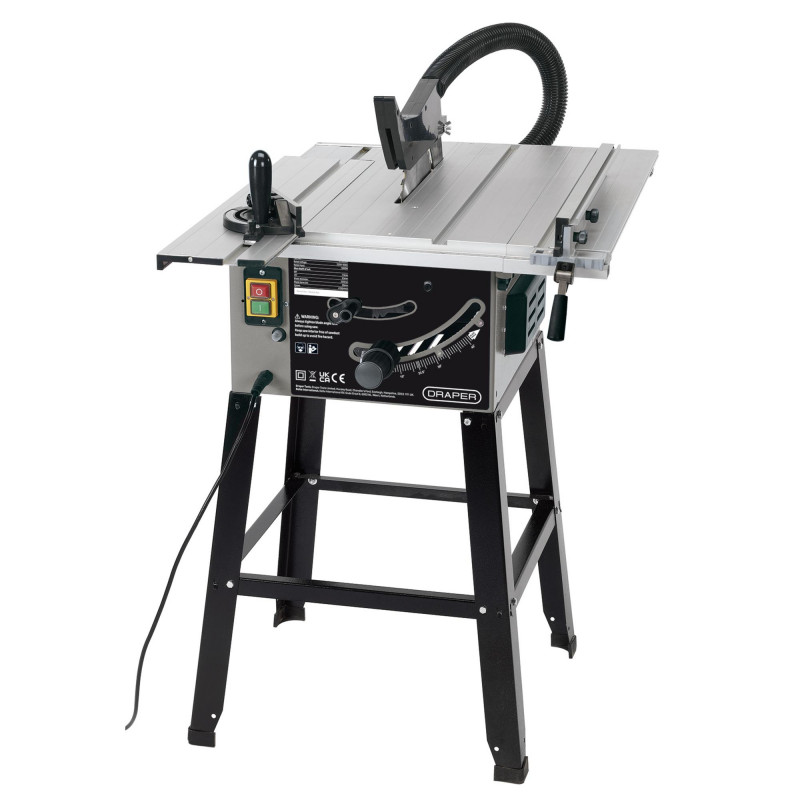

Square wood with maximum precision with the 250mm Sliding Table Saw. Powered by a motor of 1800W, it's designed for ripping, straight, mitre and compound angle cutting. With a fully extended work area of 800 x 590mm, there's plenty of room to cut large boards with ease. It has a single side extension to the right, and a sliding wing on the left. It is suited to the woodworking enthusiast. The saw is bench mounted or fitted to a stand sold separately (stock no. 82572).
Supplied with a front locking rip fence, mitre gauge, adjustable riving knife and push stick Fitted with a no-volt switch Dust extraction facility Bench mounted or fitted to a stand (stock no. 82572)
Contents
1 x Sliding Table Saw, 250mm, 1800W
Visit product in the Draper catalogue. Page 354
Download Instruction Manual
Download Parts Listing
Download Declaration Of Conformity
Contents
1 x Sliding Table Saw, 250mm, 1800W
Visit product in the Draper catalogue. Page 354
Download Instruction Manual
Download Parts Listing
Download Declaration Of Conformity
| Product Details | |
| Blade Diameter | 250mm (10) x 30mm bore |
| Bore | 30mm |
| Max Depth of Cut at 45° | 63mm |
| Max Depth of Cut at 90° | 74mm |
| Speed | 4700r/min |
| Weight | 19.8kg |
| Work Area | 690 x 590mm |
