Auto-ranging achieving TRMS 5999 counts and voltage, current, hEF, continuity, resistance, temperature, diode and non-contact voltage testing. Fitted with a backlit LCD screen, auto power-off, continuity buzzer and data hold features. Supplied with test leads, temp probe and 1 x 6F22 9V battery.
Auto ranging achieving TRMS 5999 counts and voltage, current, hEF, continuity, resistance, temperature, diode and non contact voltage testing Fitted with a backlit LCD screen, auto power off, continuity buzzer and data hold features Supplied with test leads, temp probe and 1 x 6F22 9V battery
Contents

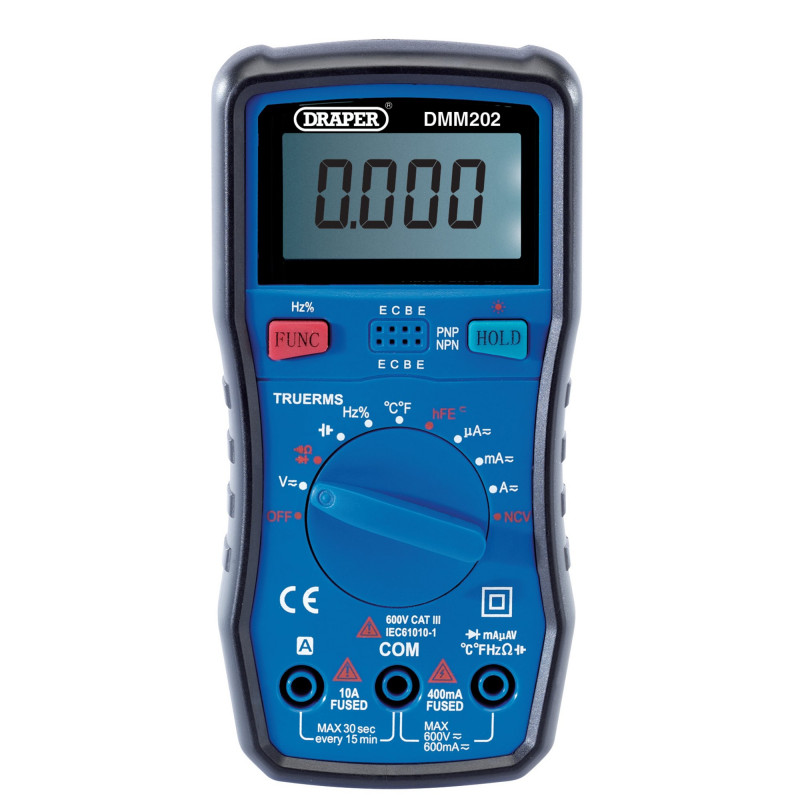

1 x Auto-Ranging Digital Multimeter
1 x Test Leads
1 x Temp Probe
1 x 6F22 9V battery
Visit product in the Draper catalogue. Page 692
Download Instruction Manual
Download Declaration Of Conformity
Download Safety Data Sheet
Contents
1 x Auto-Ranging Digital Multimeter
1 x Test Leads
1 x Temp Probe
1 x 6F22 9V battery
Visit product in the Draper catalogue. Page 692
Download Instruction Manual
Download Declaration Of Conformity
Download Safety Data Sheet
| Product Details | |
| AC Amps | 600uA/6000uA/60mA/600mA/6A/10A |
| AC Current | 600µA/6000uA/60mA/600mA/6A/10A |
| AC Voltage | 6V/60V/600V |
| Automatic Power Off | Yes |
| Battery | 6F22 9V |
| Capacitance | 10nF/100nF/1µF/10µF/100µF/1000mF/10mF/100mF |
| DC Amps | 600uA/6000uA/60mA/600mA/6A/10A |
| DC Current | 600µA/6000uA/60mA/600mA/6A/10A |
| DC Voltage | 600mV/6V/60V/600V |
| Dimensions | 172mm x 174mm x 50mm |
| Diode on/off Test | Yes |
| Duty Ratio | Yes |
| Dwell | N/A |
| Frequency | 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz |
| Resistance (Ohms) | 600?/6k?/60k?/600k?/6M?/60M? |
| Symbol Unit Data Hold | Yes |
| TACH | N/A |
| Temperature | -20 to 1000ºC |
| Temperature Range | -50°C - 1000°C/-58°F - 1832°F |
| Weight | 361g (approx.) |
