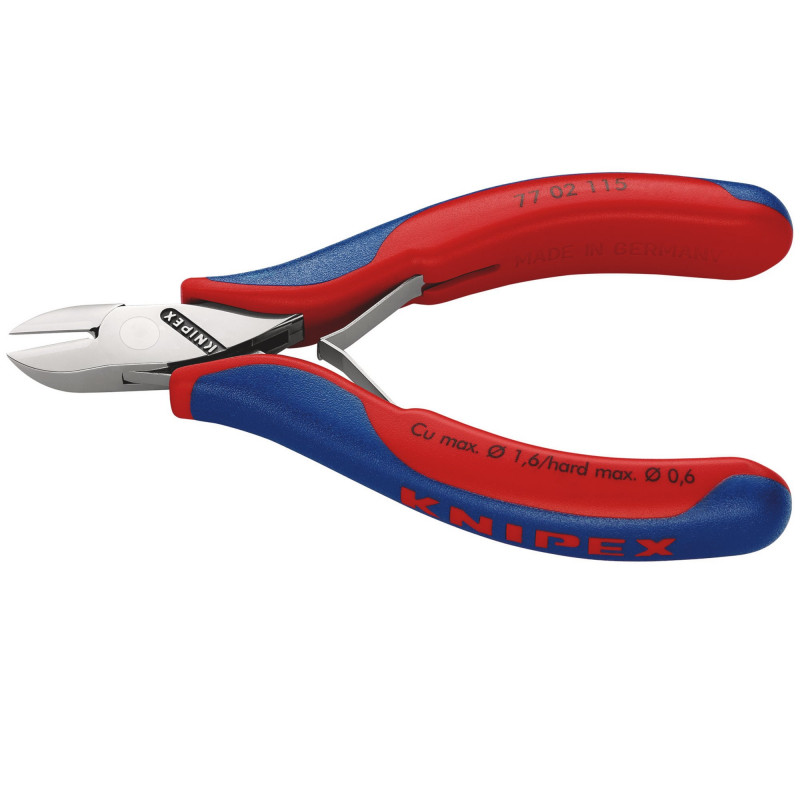

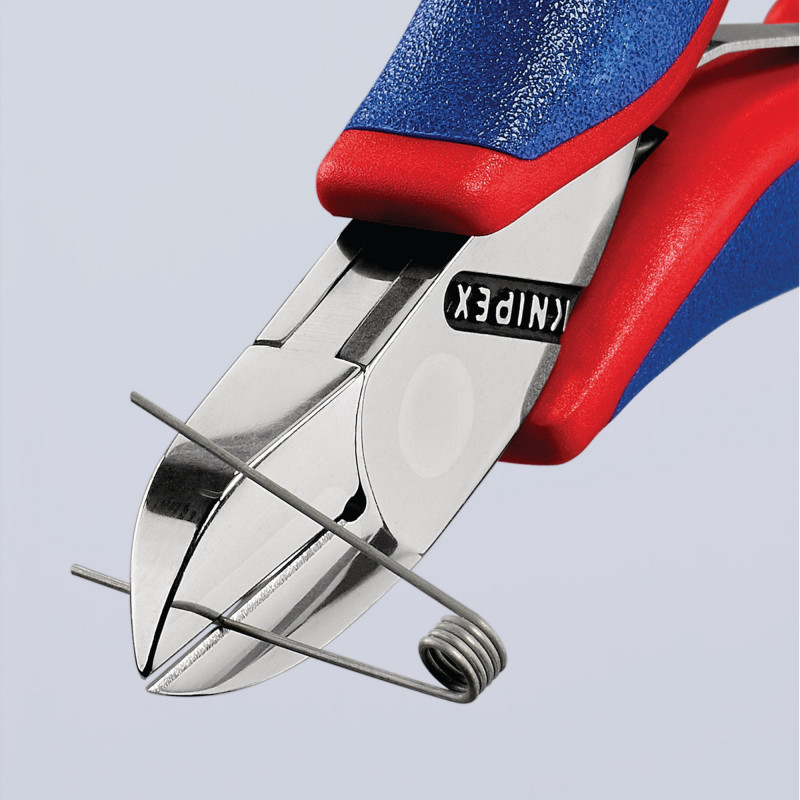

77 02 115 Electronics Diagonal Cutter Durable, load-optimised design with backlash-free box joint. High, slim sleeves for fine and comfortable gripping between thumb and index finger. Less physical effort due to very high transmission ratio. Load-optimised for a more direct feel when working. Low-friction double spring for gentle and even opening. The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools. Cutters additionally laser hardened, cutter hardness at least 62 HRC. round head, with small bevel. - Cutting capacities medium hard wire (diameter): Ø 1.2mm- Cutting capacities hard wire (diameter): Ø 0.6mm- Cutting capacities soft wire (diameter): Ø 0.3?–?1.6mm- Jaw length (B): 14mm- Jaw thickness (joint) (D): 7.5mm- Head width (A): 11mm

Durable, load-optimised design with backlash-free box joint

High, slim sleeves for fine and comfortable gripping between thumb and index finger

Less physical effort due to very high transmission ratio

Load-optimised for a more direct feel when working

Low-friction double spring for gentle and even opening

The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools

Cutters additionally laser hardened, cutter hardness at least 62 HRC

---

Contents

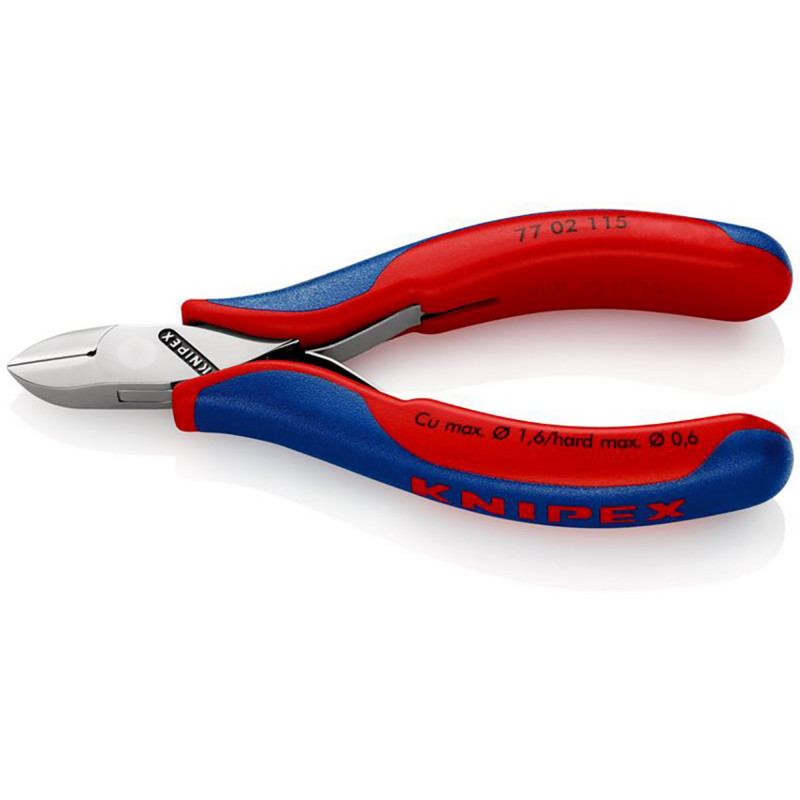

1 x KNIPEX 77 02 115 Electronics Diagonal Cutter with Box Joint, 115mm


Manufactured to DIN ISO 9654 Specifications

Visit product in the Draper catalogue. Page 724
