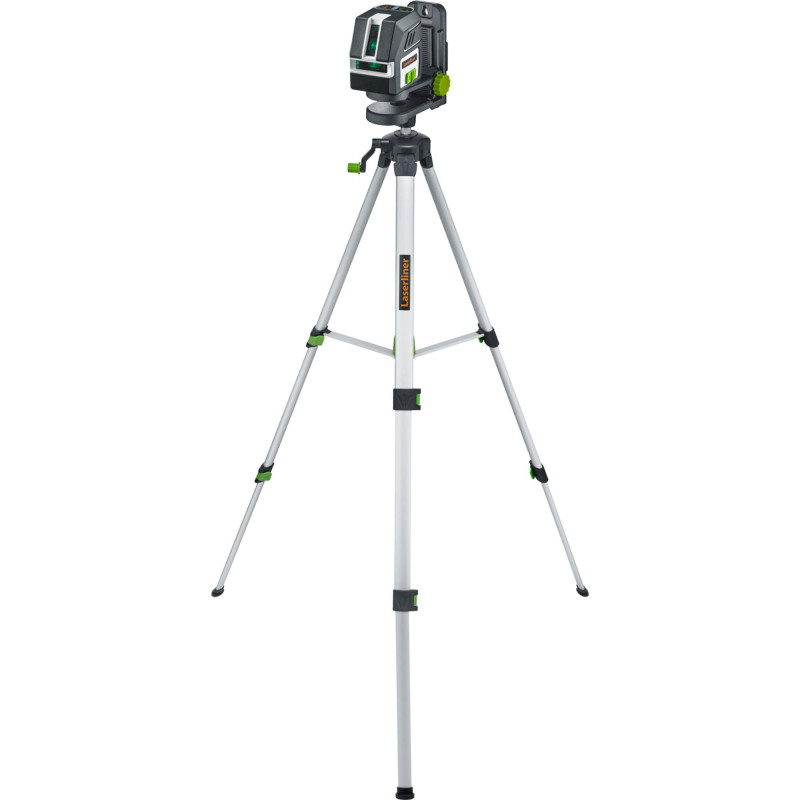

This cross-line laser projects a highly visible green laser cross for precise horizontal and vertical alignment of objects. It also has a manual slope function for setting creating gradients. A versatile range of accessories means this laser is the solution for any precision alignment job. The compact tripod has a wide adjustment range due to the multi-section telescopic legs and a crank (30 cm stroke). The PocketWallHolder, a multi-functional, height-adjustable magnetic bracket, is suitable for attaching to walls, metal items, and tripods with a 1/4” or 5/8” thread. Supplied with battery pack.
Accurate horizontal and vertical alignment of objects Good visibility through green laser technology Easy alignment of slopes with manual tilt function Light and robust compact tripod 150cm Crank height adjustment and telescopic tripod legs Height-adjustable, magnetic, multi-function bracket with 1/4” and 5/8” thread for attaching to walls, metal items and tripods Magnetic target plate with stand, nail hole and dual scale – perfect for working close to ceilings Laser enhancement glasses for optimum visibility of laser lines with the human eye Time-saving automatic alignment Supplied with battery pack

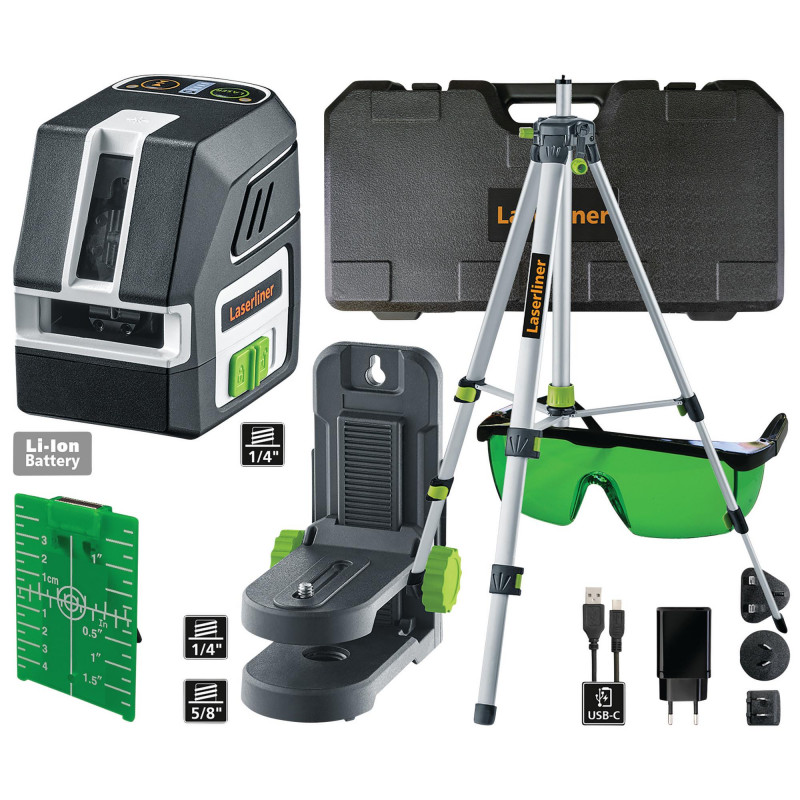

Contents
1 x Laserliner 036.713A PocketCross-Laser 2G Set Cross-Line Laser, 150cm
1 x Compact tripod 150 cm
1 x PocketWallHolder
1 x Magnetic target plate green
1 x Laser enhancement glasses
1 x Li-ion battery pack
1 x Network/charging device incl. international adapter
1 x USB-C-cable
1 x Carrying case
Download Instruction Manual
Contents
1 x Laserliner 036.713A PocketCross-Laser 2G Set Cross-Line Laser, 150cm
1 x Compact tripod 150 cm
1 x PocketWallHolder
1 x Magnetic target plate green
1 x Laser enhancement glasses
1 x Li-ion battery pack
1 x Network/charging device incl. international adapter
1 x USB-C-cable
1 x Carrying case
Download Instruction Manual
| Product Details | |
| Accuracy | ±0.3 mm/m |
| Battery and mains operation | Yes |
| Dimensions (W x H x D) | 91 mm x 82 mm x 60 mm |
| Hand receiver mode | Yes |
| Horizontal/vertical levelling | Yes |
| Laser Class | 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |
| Laser Wavelength | 515nm |
| Levelling | Automatic |
| Manual slope function | Yes |
| Operating Conditions | 0°C … 50°C |
| Operating time | approx. 15 hours |
| Power supply | Li-ion battery pack 3.7V / 3.6Ah / 13.32Wh, Power adapter 5V / DC / 2A |
| Self-Levelling Range | ± 3.5° (horizontal) |
| Visibility (Typical)* | 55 m |
| Weight | 334g (incl. Akkupack) |
