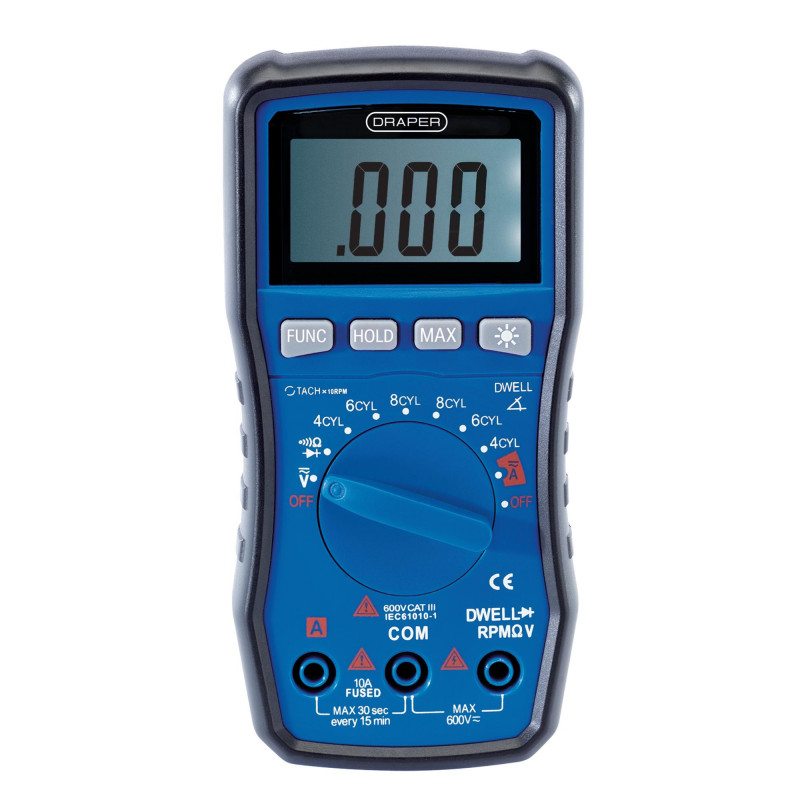

Auto and manual ranging capable of voltage, current, resistance, diode and continuity testing. Fitted with a backlit LCD screen, DWELL, Tach, MAX, auto power off, continuity buzzer and data hold features. Supplied with test leads and a case.
Auto ranging multimeter
Contents
1 x Automotive Digital Multimeter
Visit product in the Draper catalogue. Page 117
Download Instruction Manual
Download Declaration Of Conformity
Contents
1 x Automotive Digital Multimeter
Visit product in the Draper catalogue. Page 117
Download Instruction Manual
Download Declaration Of Conformity
| Product Details | |
| AC Amps | 2A/10A |
| AC Current | 2A/10A |
| AC Voltage | 200mV/2V/20V/200V/600V |
| Automatic Power Off | Yes |
| Battery type | 2 x AAA (not supplied) |
| Capacitance | N/A |
| DC Amps | 2A/10A |
| DC Current | 2A/10A |
| DC Voltage | 200mV/2V/20V/200V/600V |
| Dimensions | 150mm x 74mm x 43mm |
| Diode on/off Test | Yes |
| Duty Ratio | Yes |
| Dwell | 4CYL, 6CYL, 8CYL |
| Frequency | N/A |
| Resistance (Ohms) | 200?/2k?/20k?/200k?/2M?/20M? |
| Symbol Unit Data Hold | Yes |
| TACH | 4CYL/6CYL/8CYL |
| Temperature Range | N/A |
| Weight | 319g (approx.) |
