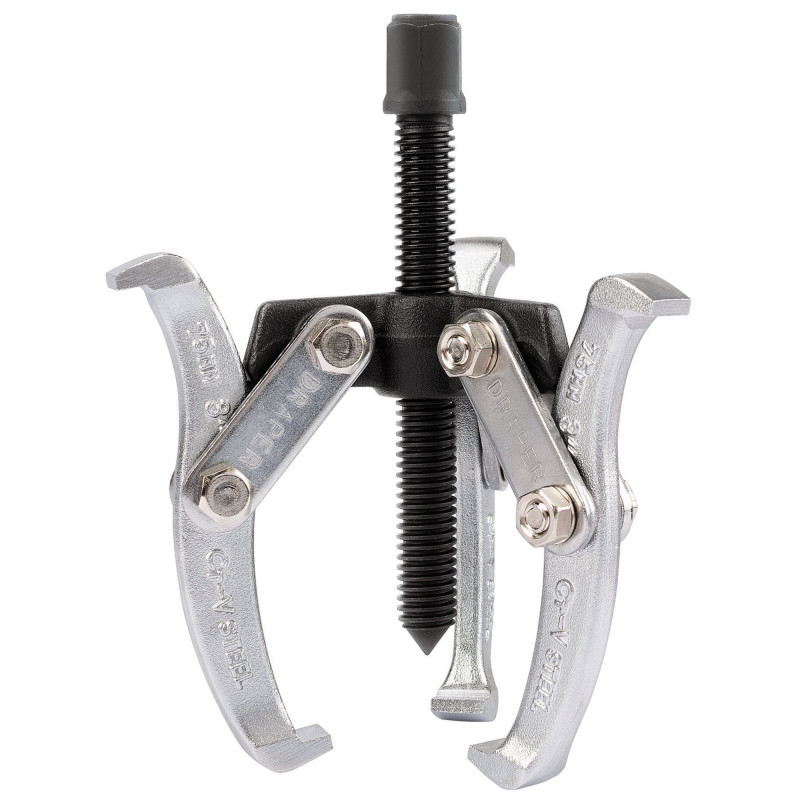

Puller with three reversible legs for external and internal pulling of gears, bearings, etc. Legs are forged carbon steel and have long and short reach facility. Yoke and thrust bolt are manufactured from carbon steel. Screw has a rolled thread with chemically blacked finish.
Three reversible legs for external and internal pulling of gears, bearings, etc Legs are forged carbon steel and have long and short reach facility
Contents
1 x Triple Leg Reversible Puller, 65mm Reach x 75mm Spread
Visit product in the Draper catalogue. Page 227
Contents
1 x Triple Leg Reversible Puller, 65mm Reach x 75mm Spread
Visit product in the Draper catalogue. Page 227
| Product Details | |
| Central Screw Size | 11.8 x 124mm |
| Hexagonal Head | 14mm |
| Max Reach | 65mm |
| Max Spread | 75mm |
| Net Weight (approx) | 0.52kg |
| Screw Hardness | 35–27 HRC |
