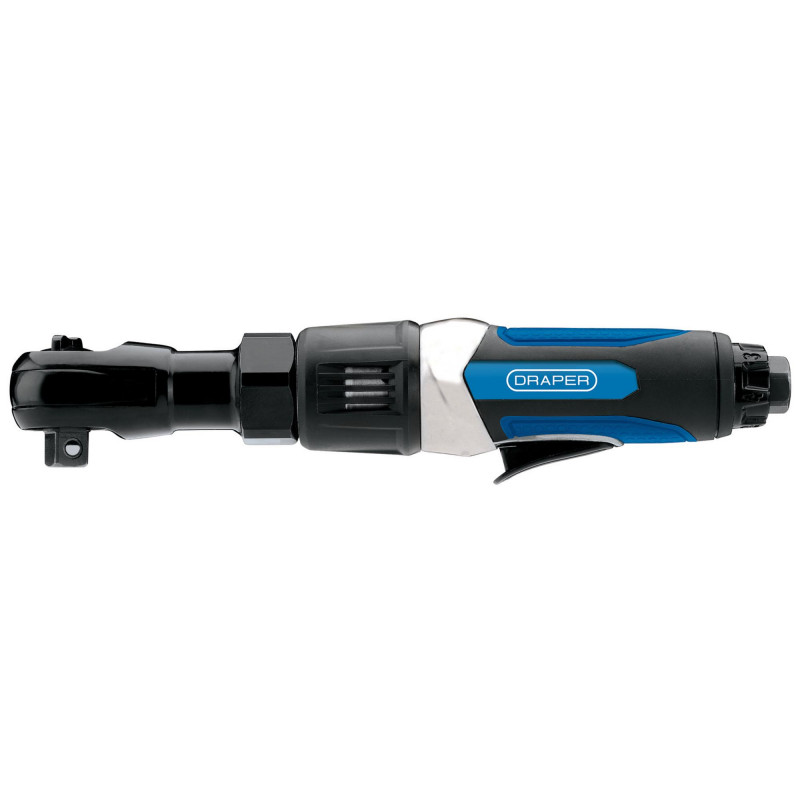

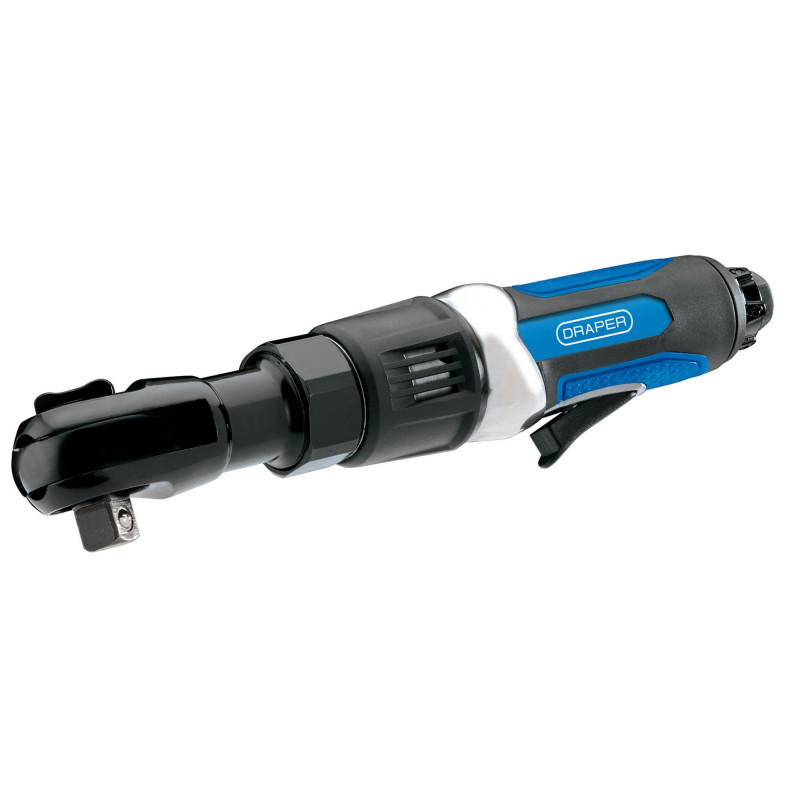

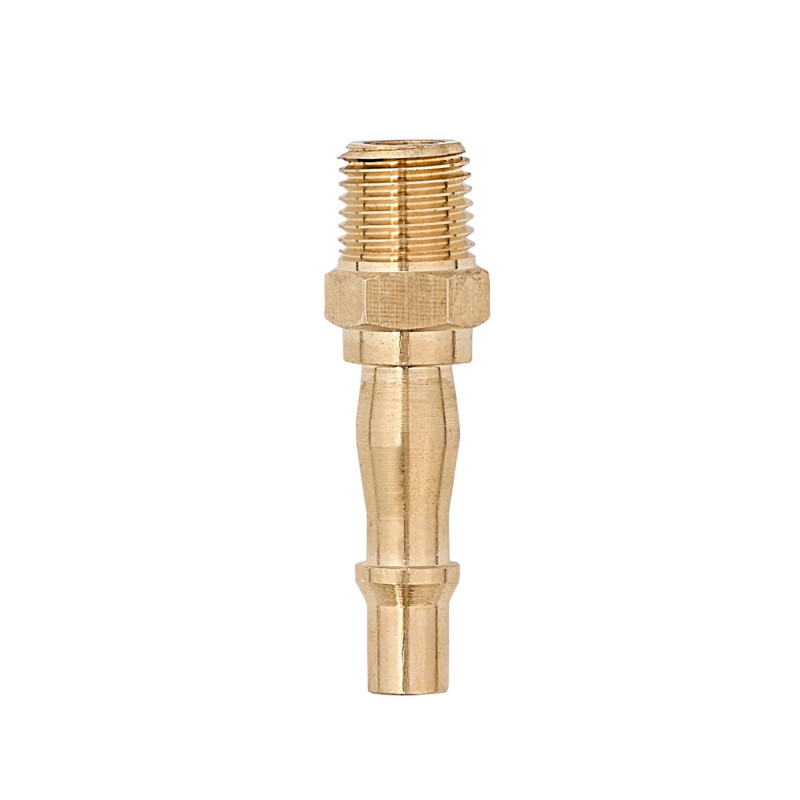

Compact air ratchet with stubby yoke. Manufactured with a lightweight aluminium housing attached to an ergonomic soft grip handle providing comfort even when used for prolonged periods. Fitted with a 4-speed rear regulator, a middle exhaust and attached with a 1/4 BSP airline connector which connects with the 360° rotating air inlet, helping prevent air-lines from kinking when in use. A comfortable tool for auto body repair jobs like removing or replacing radiators, spark plugs, air conditioning and water pumps.
Twin ratchet paws Stubby yoke Teaser trigger 360° turnable exhaust deflector 4-speed Middle exhaust
Contents
1 x Air Ratchet, 1/2 Sq. Dr.
Visit product in the Draper catalogue. Page 278
Download Instruction Manual
Download Declaration Of Conformity
Contents
1 x Air Ratchet, 1/2 Sq. Dr.
Visit product in the Draper catalogue. Page 278
Download Instruction Manual
Download Declaration Of Conformity
| Product Details | |
| Air Inlet | 1/4 BSP |
| Average Air Consumption | 4cfm (113L/min) |
| Free Speed | 160rpm |
| Min Hose Size | 3/8 (10mm) |
| Operating Air Pressure | 90psi (6.2bar) |
| Square Drive | 1/2 |
| Ultimate Torque | 85Nm (60ft/lb) |
| Vibration Level | 4.35m/s2 |
| Weight | 1.22kg |
