The digital spirit level is ideal for the accurate alignment of slopes, has a Digital Connection interface and is splashwater-proof. Operation is very easy thanks to the acoustic guidance function and defined standard gradients for typical applications. Supplied with batteries and softbag.
Exact alignment of slopes Comfortable overhead measurements thanks to flip display Free hands when working on metal constructions thanks to magnetic holder Standard gradients for roof pitch, slopes, drain pipes Calibration: permanent accuracy via reverse measurement Acoustic guidance with 3 different signal tone Measurement units can be switched Digital Connection interface for use with MeasureNote app Illuminated display with direction indicator Supplied with batteries and softbag
Contents

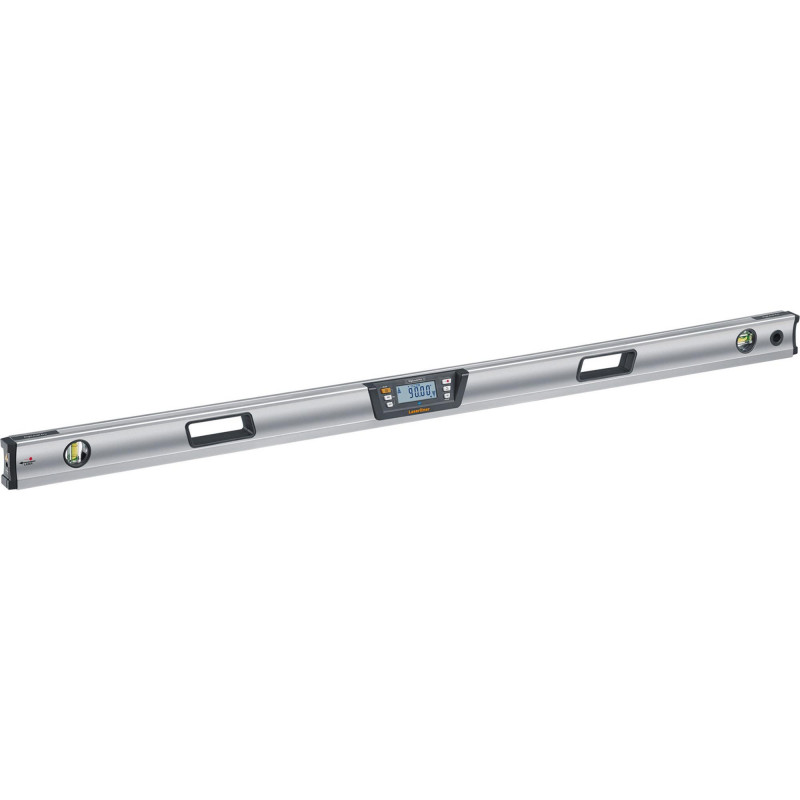

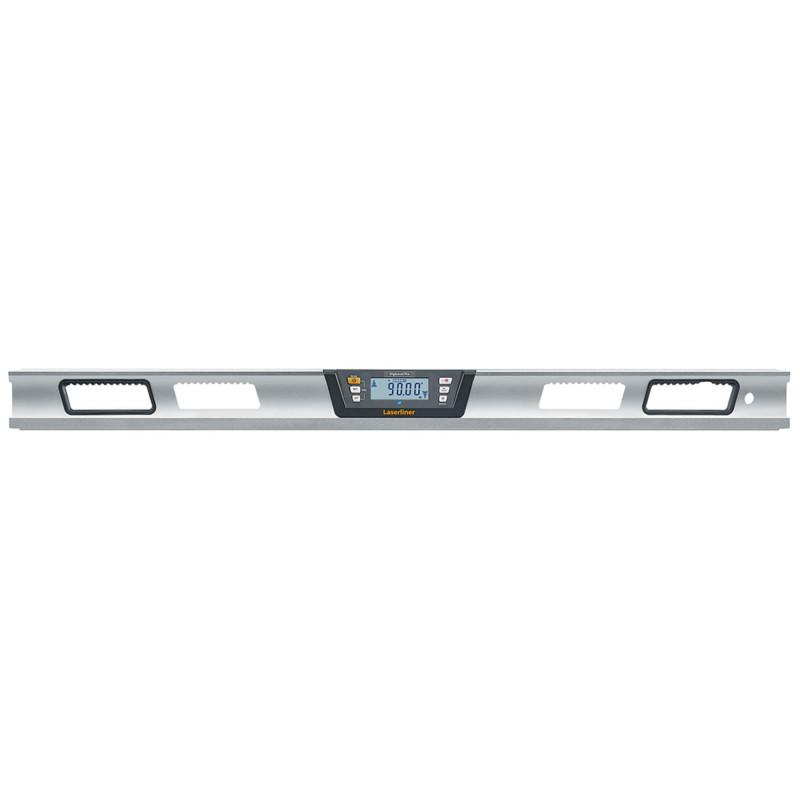

1 x Laserliner 081.275A DigiLevel Pro 120 Electronic Spirit Level, 1200mm
1 x Batteries
1 x Softbag
Download Instruction Manual
Contents
1 x Laserliner 081.275A DigiLevel Pro 120 Electronic Spirit Level, 1200mm
1 x Batteries
1 x Softbag
Download Instruction Manual
| Product Details | |
| 90°/45°/0° signal | Yes |
| Angle display | Yes |
| Data transfer | Yes |
| Digital 360° slope measurement | Yes |
| Dimensions (W x H x D) | 1200 mm x 63 mm x 33 mm |
| Display Accuracy | 2 decimal places |
| Display Accuracy 0° - 1° | 2 decimal places |
| Display Accuracy 1° - 90° | 2 decimal places |
| Laser Class | 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |
| Laser projection | Yes |
| Laser Wavelength | 635 nm |
| Operating time | with laser: approx. 10 hours without laser: approx. 55 hour |
| Overhead measurement (flip display) | Yes |
| Port | Digital Connection |
| Power supply | 2 x 1.5V LR03 (AAA) |
| Protection class | IP 54 |
| Slope transfer (ref. mode) | Yes |
| Vial Accuracy | ±0.5 mm/m |
| Weight | 1360g |
