A robust welded base delivers reliable strength under pressure for heavy-duty loads up to 12 tonnes, while the adjustable height ram saddle, stable base, and storage-friendly three-piece handle provide flexibility and convenient storage.
Can lift heavy-duty loads of up to 12 tonnes with reliable stability Tough welded base for a solid structure that provides strong, dependable support Compact 168mm height allows a smooth fit even under low vehicles Made from Q235 steel for durability and long-lasting performance Built-in safety overload valve prevents lifting beyond safe limits Manufactured, tested, and certified to EN1494 standards
Contents

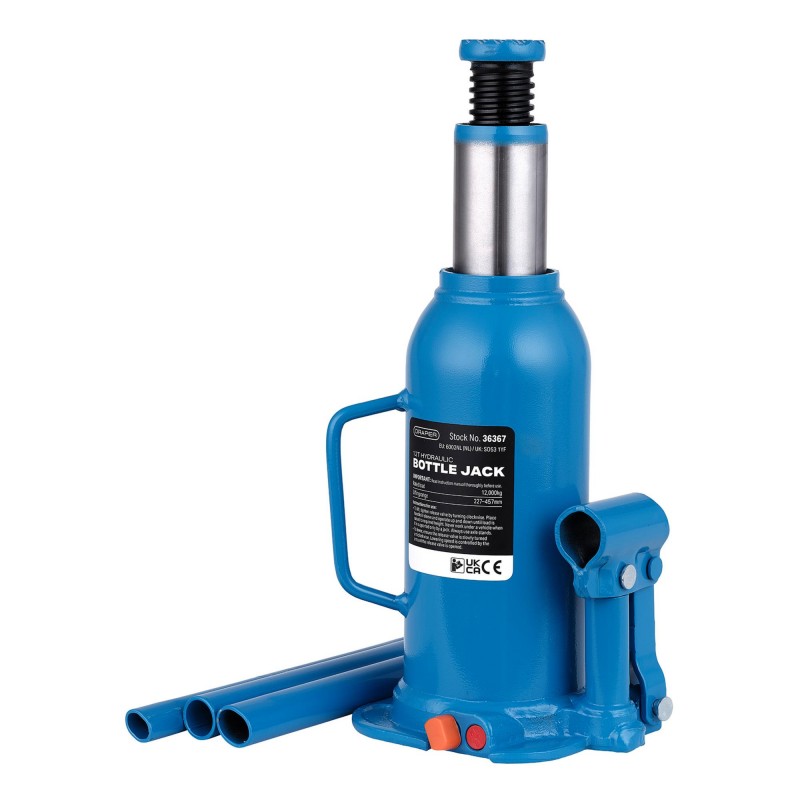

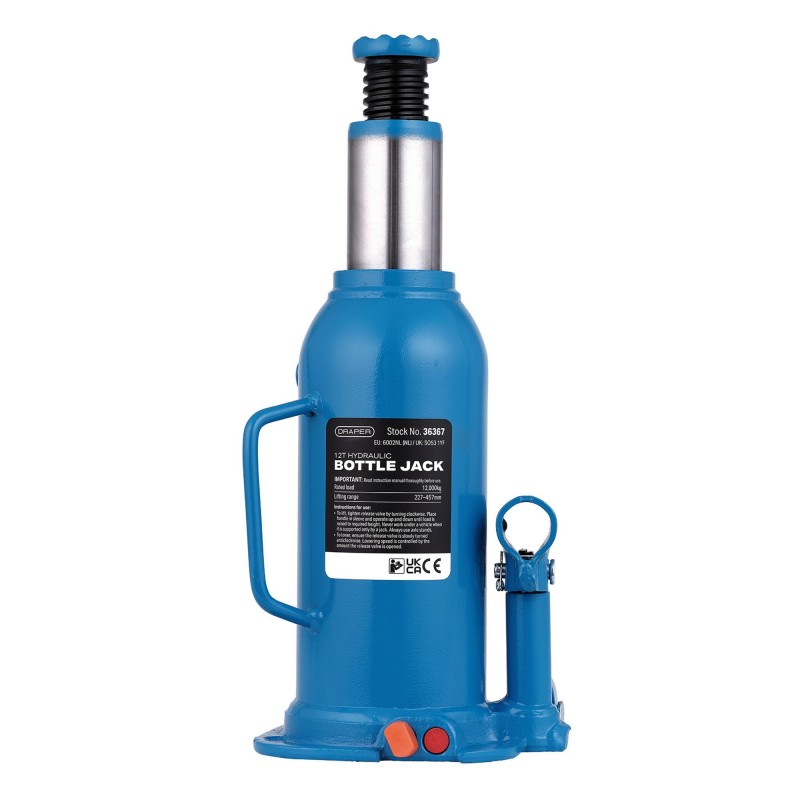

1 x Hydraulic Bottle Jack, 12 Tonne
Manufactured to EN1494 Specification
Visit product in the Draper catalogue. Page 193
Download Instruction Manual
Download Declaration Of Conformity
Contents
1 x Hydraulic Bottle Jack, 12 Tonne
Manufactured to EN1494 Specification
Visit product in the Draper catalogue. Page 193
Download Instruction Manual
Download Declaration Of Conformity
| Product Details | |
| Base Size | 124*106mm (Approx) |
| Capacity | 12 Tonne (12,000kg) |
| Jack Handle Design | Three-Piece |
| Jack handle length | 280mm (Approx) |
| Maximum height | 457mm (Approx) |
| Minimum height | 227mm (Approx) |
| Net Weight | 6kg |
| Ram diameter | 33mm (Approx) |
| Screw extension | 50mm (Approx) |
